Model Whirlpool F5007^0 – Common Parts & Diagrams

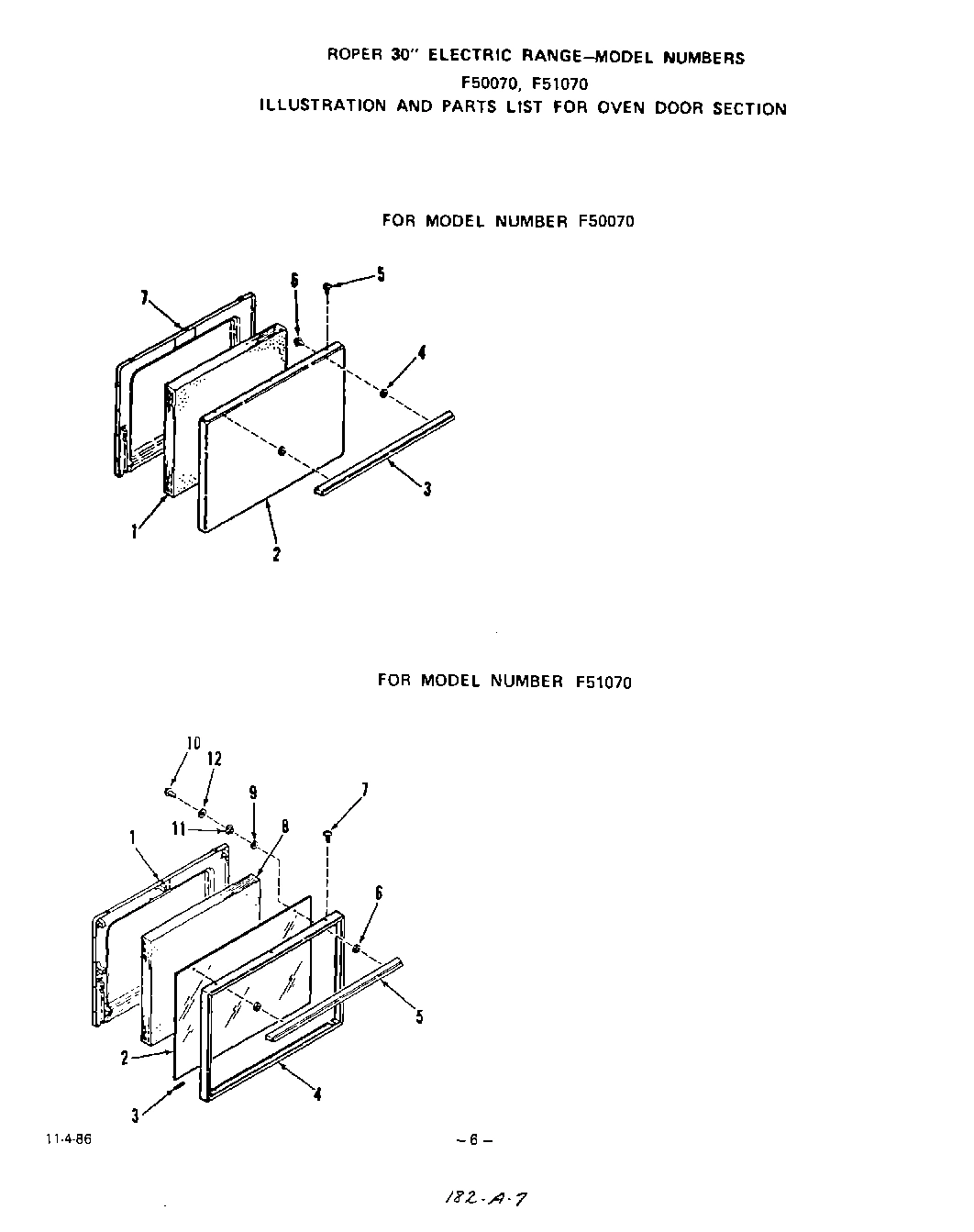

05 - OVEN DOOR

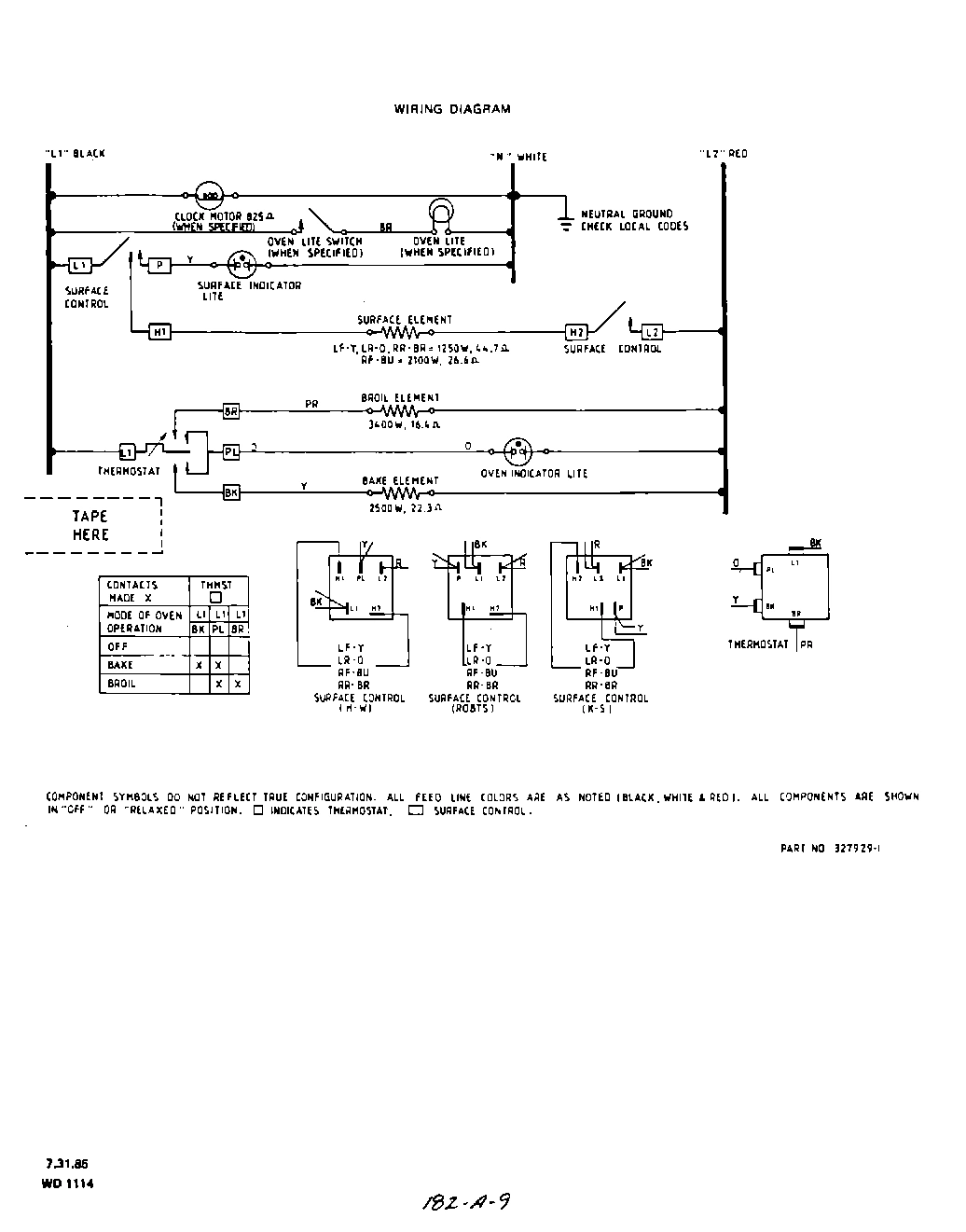

07 - WIRING DIAGRAM

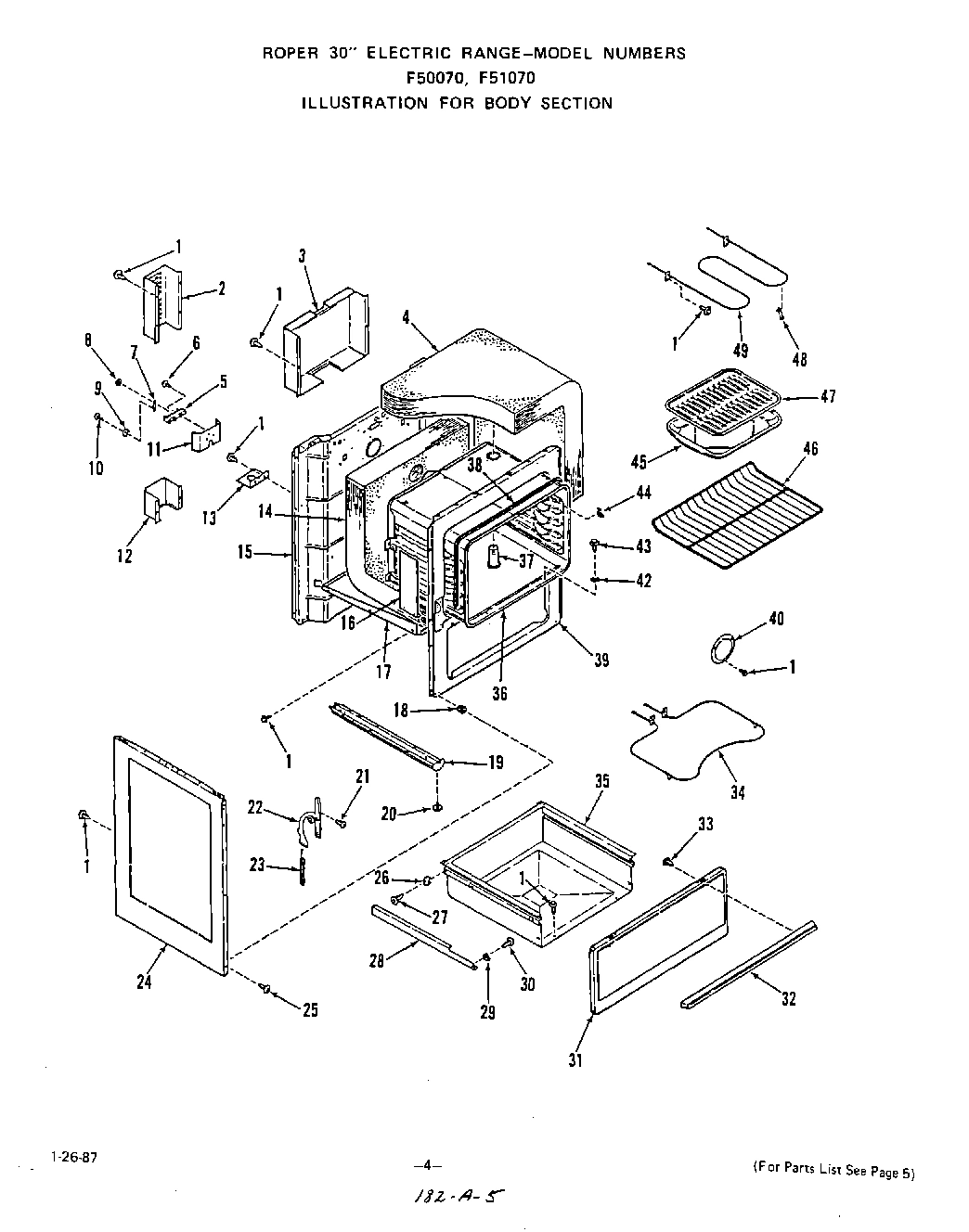

04 - BODY

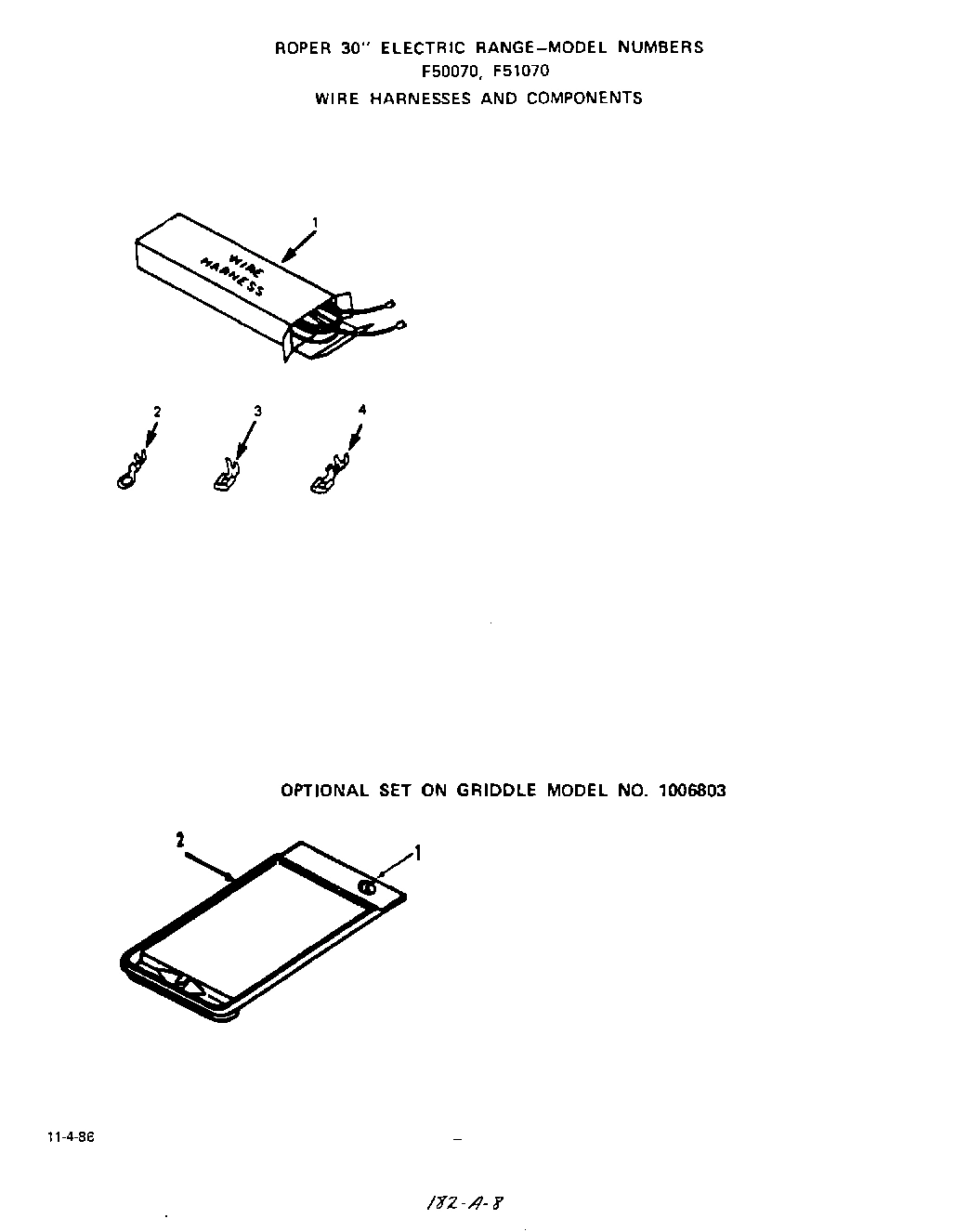

06 - WIRE HARNESS , GRIDDLE

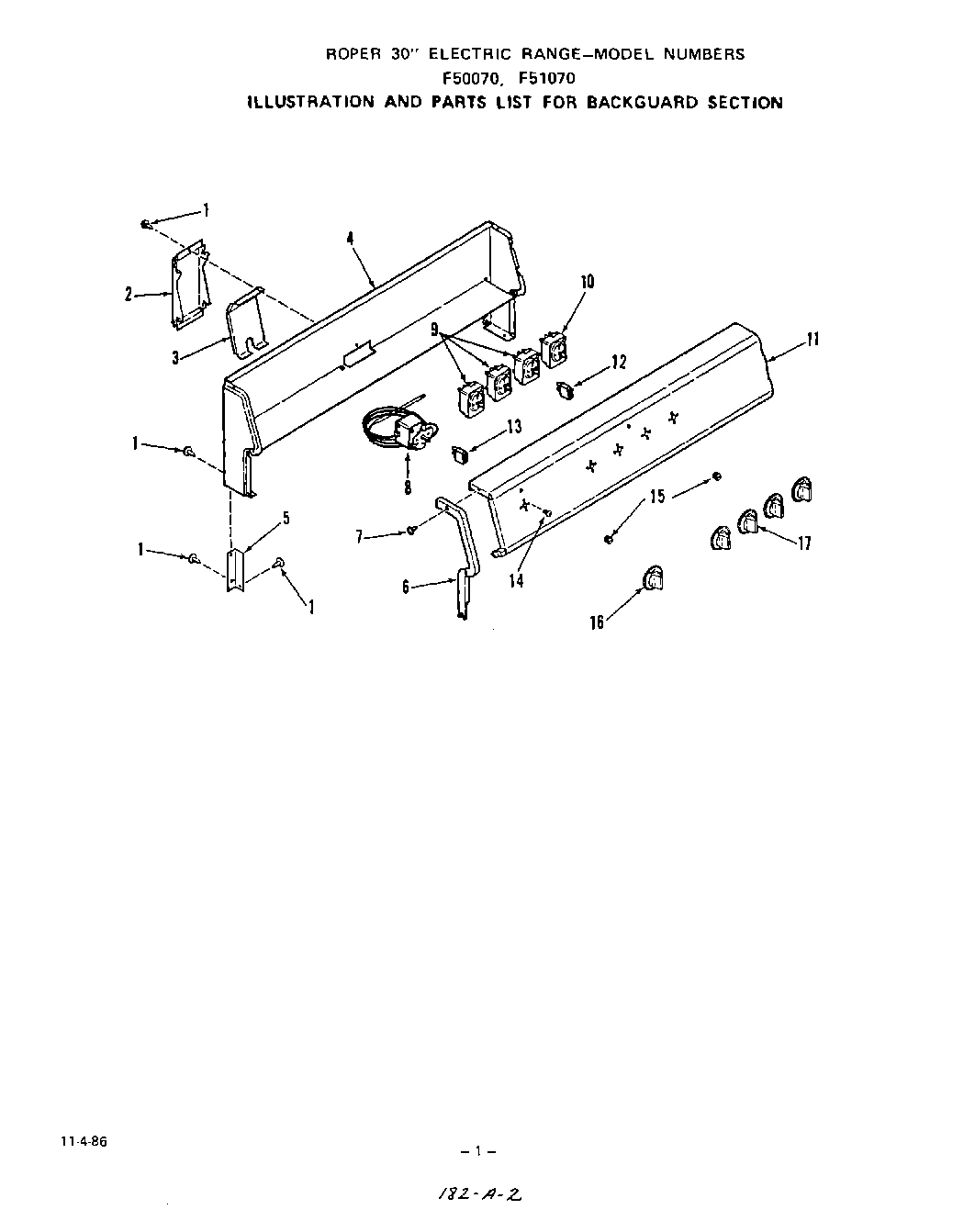

02 - BACKGUARD

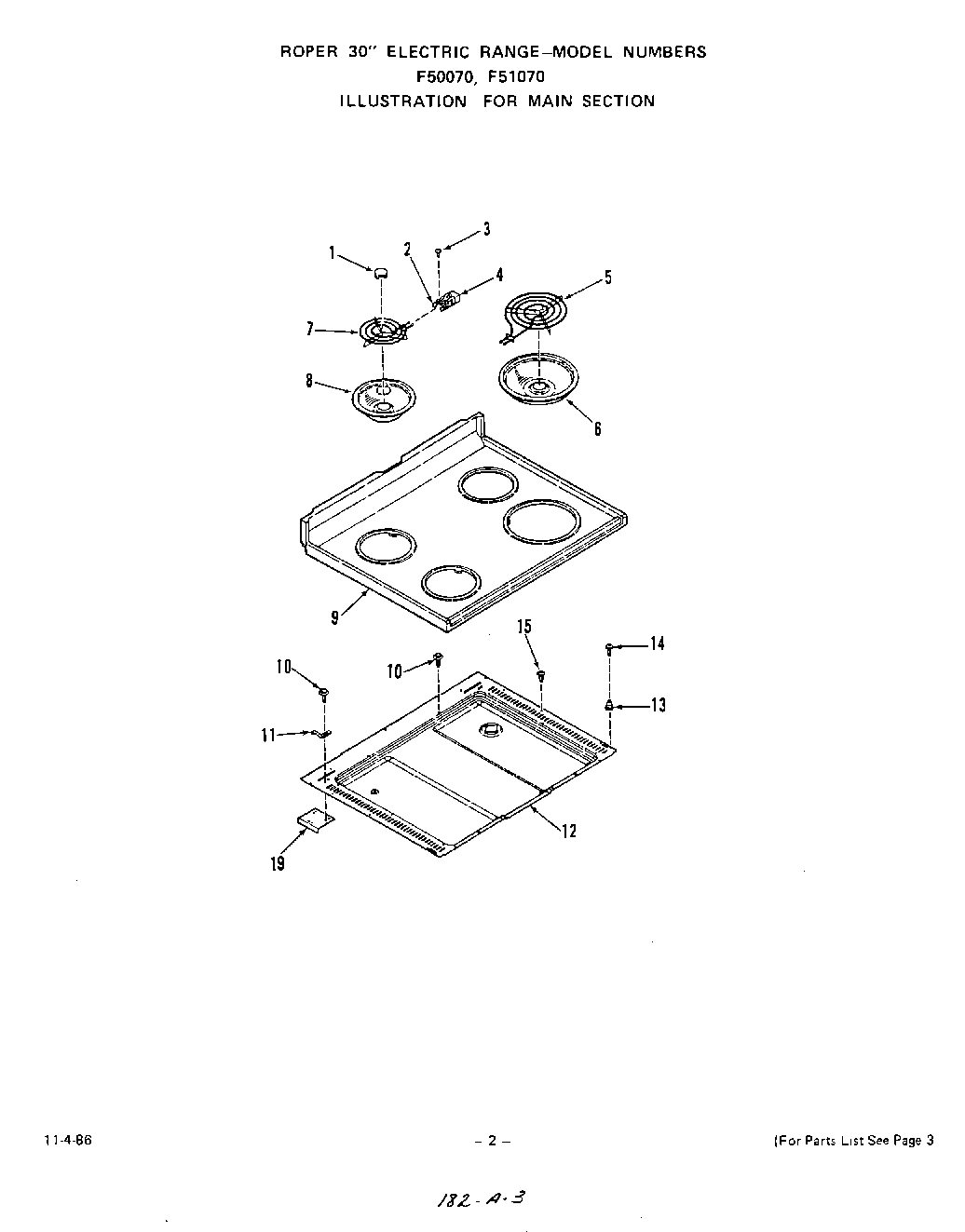

03 - MAIN
Common parts from model Whirlpool F5007^0
240 Volt WPL 325883 Contact Us For Availability
208 Volt WPL 326364 Contact Us For Availability
xRight WPL 334632 Contact Us For Availability
xLeft WPL 334633 Contact Us For Availability
1
Lining-Oven Door WPL 331580 Contact Us For Availability
1
Main WPL 334534 Contact Us For Availability
1
Main Top WPL 334535 Contact Us For Availability
1
Wire Harness WPL ARI56751A1 Contact Us For Availability
1
Medallion (4 Req) WPL 318586 Contact Us For Availability
2
Outer Glass-Oven Door WPL 332068 Contact Us For Availability
2
White WPL 333452 Contact Us For Availability
2
Almond WPL 333454 Contact Us For Availability
2
Front Panel-Oven Door WPL ARI56750A5 Contact Us For Availability
2
Wire Shield-Upper WPL 327235 Contact Us For Availability
2
Eyelet Terminal WPL 238387 Contact Us For Availability
2
Wire Raceway WPL 334363 Contact Us For Availability
2
Terminal Block Clip (4 Req) WPL 318872 Contact Us For Availability
3
Cushion-Door Glass WPL 112370 Contact Us For Availability
3
Wire Shield WPL 333956 Contact Us For Availability
3
Flag Terminal WPL 238391 Contact Us For Availability
3
Raceway Cover WPL 334364 Contact Us For Availability
3
Screw 7-32x5/16`` WPL 299632 Contact Us For Availability
4
Frame-Oven Door WPL 334372 Contact Us For Availability
4
Insulation-Oven Wrap WPL 326040 Contact Us For Availability
4
3/16`` WPL 238392 Contact Us For Availability
4
1/4`` WPL 238393 Contact Us For Availability
4
Faston Terminal WPL ARI56752A1 Contact Us For Availability
4
Backguard Body WPL 334199 Contact Us For Availability
4
Terminal Block w/Wires (4 Req) WPL 318960 Contact Us For Availability
5
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
5
Junction Block WPL 290105 Contact Us For Availability
5
Right WPL 335120 Contact Us For Availability
5
Left WPL 335121 Contact Us For Availability
5
Backguard Support WPL ARI56740A9 Contact Us For Availability
5
8`` Surface Element WPL 325503 Contact Us For Availability
6
Spacer, Door Handle WPL 107158 Contact Us For Availability
6
Screw 10-32x1`` WPL 313190 Contact Us For Availability
6
Right WPL 335074 Contact Us For Availability
6
Left WPL 335075 Contact Us For Availability
6
End Cap WPL ARI56741A9 Contact Us For Availability
6
8`` Burner Bowl WPL 304969 Contact Us For Availability
7
Lining-Oven Door WPL 331579 Contact Us For Availability
7
Ground Strap WPL 327255 Contact Us For Availability
7
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
7
6`` Surface Element WPL 325507 Contact Us For Availability
8
Insulation-Oven Door WPL 327625 Contact Us For Availability
8
Hex Nut 10-32 WPL 97816 Contact Us For Availability
8
Thermostat WPL 334896 Contact Us For Availability
8
6`` Burner Bowl WPL 296481 Contact Us For Availability
9
Washer WPL 333014 Contact Us For Availability
9
Washer WPL 299425 Contact Us For Availability
9
Infinite Switch (Lt.Fr., Lt. Rr., Rt. Rr.) WPL 334887 Contact Us For Availability
9
White WPL 332043 Contact Us For Availability
9
Almond WPL 332245 Contact Us For Availability
9
Main Top WPL ARI56743A7 Contact Us For Availability
10
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
10
Screw 10-32x3/4`` WPL 300864 Contact Us For Availability
10
Screw 10-32x7/16`` WPL 313191 Contact Us For Availability
10
Infinite Switch (Rt. Front) WPL 334888 Contact Us For Availability
11
Spacer-Door Glass WPL 333015 Contact Us For Availability
11
Insulator-Service Cord WPL 327242 Contact Us For Availability
11
White WPL 335522 Contact Us For Availability
11
Almond WPL 335523 Contact Us For Availability
11
Control Panel WPL ARI56742A8 Contact Us For Availability
11
Left WPL 333859 Contact Us For Availability
11
Right WPL 334089 Contact Us For Availability
11
Hinge-Main Top WPL ARI56744A3 Contact Us For Availability
12
Washer WPL 99279 Contact Us For Availability
12
Wire Shield-Lower WPL 327258 Contact Us For Availability
12
Indicator Light WPL 331716 Contact Us For Availability
12
Burner Box Bottom WPL 333168 Contact Us For Availability
13
Range Service Mounting Plate WPL 327259 Contact Us For Availability
13
Indicator Light WPL 331717 Contact Us For Availability
13
Strike WPL 333892 Contact Us For Availability
14
Insulation-Oven Back WPL 326049 Contact Us For Availability
14
Screw 8-32x3/16`` WPL 78565 Contact Us For Availability
14
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
15
Main Back WPL 333749 Contact Us For Availability
15
Lens-Indicator Light WPL 331705 Contact Us For Availability
15
Screw 10-16x1/2`` WPL 335967 Contact Us For Availability
16
Insulation Retainer-Sides (Lt. or Rt.) WPL 328984 Contact Us For Availability
16
Thermostat Knob WPL 334991 Contact Us For Availability
17
Insulation Retainer-Lower WPL 312517 Contact Us For Availability
17
Infinite Knob WPL 334988 Contact Us For Availability
19
Base w/Levelers-Lt. or Rt. WPL 334811 Contact Us For Availability
19
Reinforcement Plate WPL 335823 Contact Us For Availability
20
Leg Levelers (4 Req) WPL 326052 Contact Us For Availability
21
Screw WPL 331704 Contact Us For Availability
22
Hinge-Oven Door WPL ARI56745A3 Contact Us For Availability
23
Spring-Oven Door (Lt. or Rt.) WPL 334569 Contact Us For Availability
24
White WPL 333303 Contact Us For Availability
24
Almond WPL 333307 Contact Us For Availability
24
Body Side (Lt. or Rt.) WPL ARI56746A8 Contact Us For Availability
25
Screw 8ABx5/8`` WPL 314124 Contact Us For Availability
26
Slide Block-Rear WPL 281913 Contact Us For Availability
27
Screw 8 - 32 x 3/8`` WPL 102563 Contact Us For Availability
28
Support-Storage Drawer WPL 311441 Contact Us For Availability
29
Slide Block-Front WPL 281914 Contact Us For Availability
30
Screw 10-32x17/22`` WPL 295849 Contact Us For Availability
31
White WPL 332121 Contact Us For Availability
31
Almond WPL 332125 Contact Us For Availability
31
Front Panel-Storage WPL ARI56747A8 Contact Us For Availability
32
Handle WPL 334848 Contact Us For Availability
33
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
34
Bake Element WPL ARI56748A8 Contact Us For Availability
35
Storage Drawer WPL 296150 Contact Us For Availability
36
Oven Body WPL 333779 Contact Us For Availability
37
Vent Tube WPL 333801 Contact Us For Availability
38
Seal-Oven Door WPL 314062 Contact Us For Availability
39
Front Frame WPL 334085 Contact Us For Availability
40
Cover WPL 326935 Contact Us For Availability
42
Washer WPL 106462 Contact Us For Availability
43
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
44
Clip-Thermostat Bulb (2 Req) WPL 335535 Contact Us For Availability
45
Broiler Pan WPL 331592 Contact Us For Availability
46
Oven Rack WPL 326068 Contact Us For Availability
47
Broiler Pan Grid WPL 326297 Contact Us For Availability
48
Support-Broil Element WPL 334565 Contact Us For Availability
49
Broil Element WPL ARI56749A6 Contact Us For Availability
A1
Thermometer WPL 87996 Contact Us For Availability
A2
Set-On Griddle WPL 236766 Contact Us For Availability
× ![]()
